Thermaltake
Tt Armour Jr. ATX Case

Chassis:  Thermaltake Armor Jr. Aluminum Mid-tower (VC3000BWS)

  • Tool-free drive rails
  • Tool-free expansion slots
  • Removable hard drive cage
  • Thumb screw access
  • Side and front panel locks
  • 11 drive bays
    • 5 external 5.25"
    • 2 external 3.5"
    • 4 internal 3.5"
  • 2 USB, 1 1394 Firewire, speaker, microphone
  • 2 120mm (front blue LED) fans 1300rpm

Thermaltake Armor Jr. (VC3000BWS)

Thermaltake

PSU  Thermaltake TR2-550W

  • Output
    • +3.3v 30A
    • +5v 28A
    • +12v1 14A
    • +12v2 15A
    • -12v 0.3A
    • +5VSB 2.0A

  • Connectors
  • 8 4-pin Peripheral Power
  • 2 4-pin Floppy Drive
  • 1 4-pin +12v power
  • 4 5-pin SATA
  • 2 6-pin PCI Express
  • 1 24-pin Main
  • ATX 12v 2.0
  • PFC
  • Low noise 12cm fan

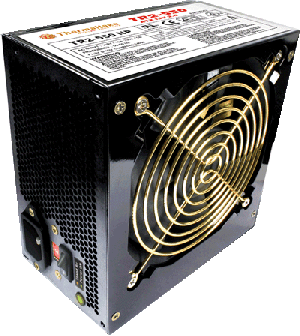

Thermaltake TR2 550W PSU
