MSI K9N Diamond Mainboard

HomeMainboardChassis & PSUPeripheralsProgramsPhotosTrouble Log

SupportFAQReviewBiosHow to buildTroubleshootingContact Me

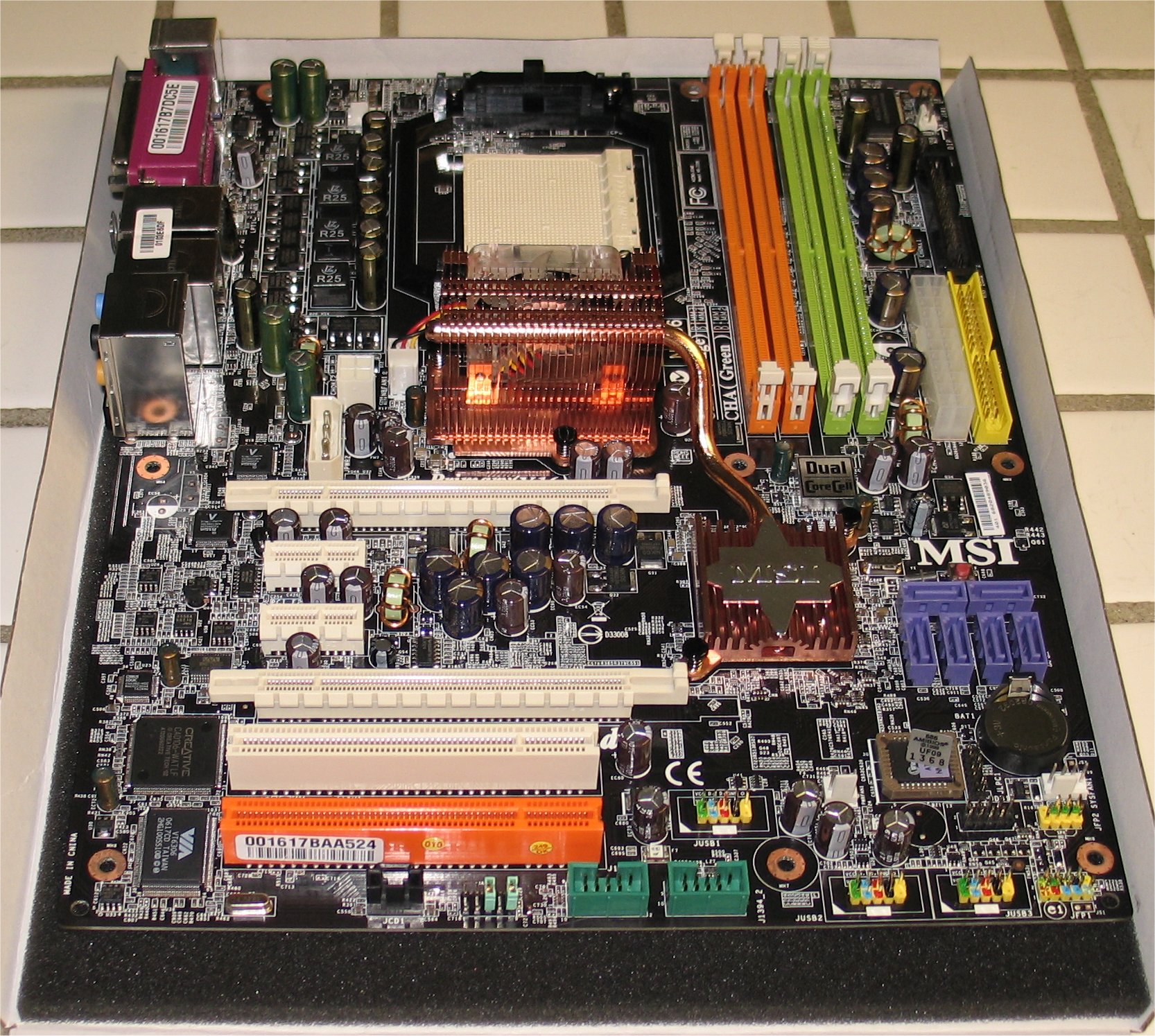

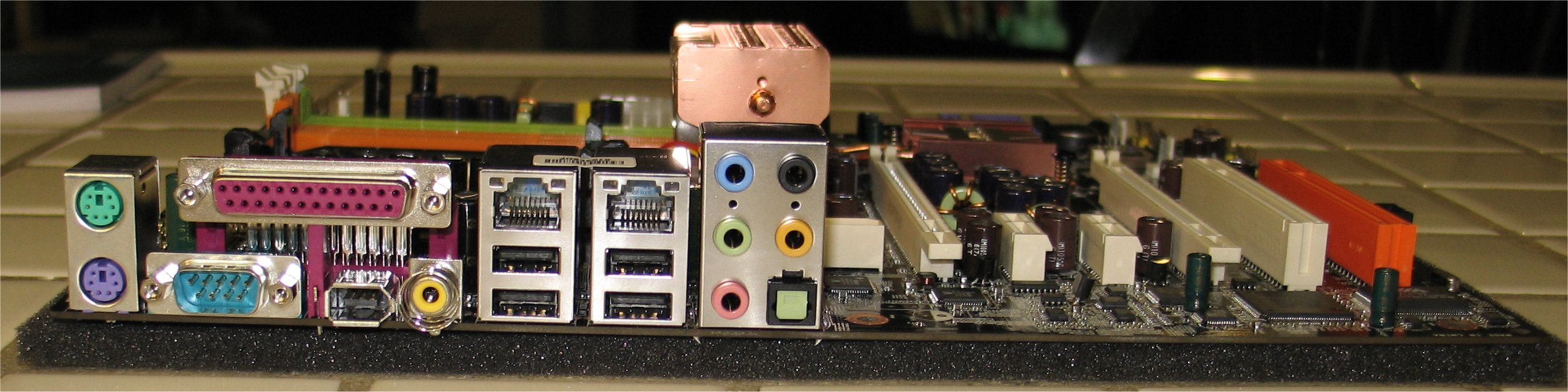

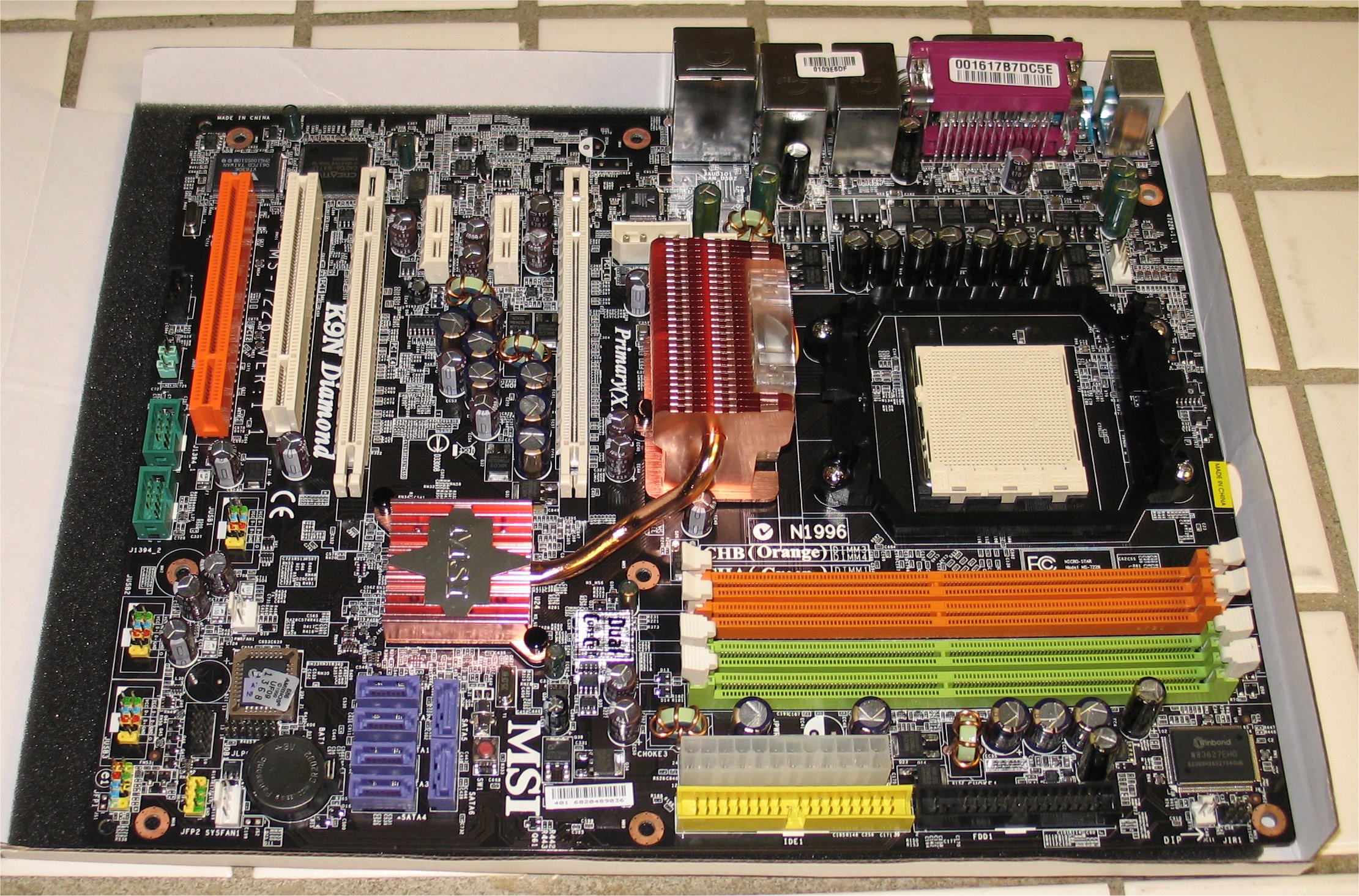

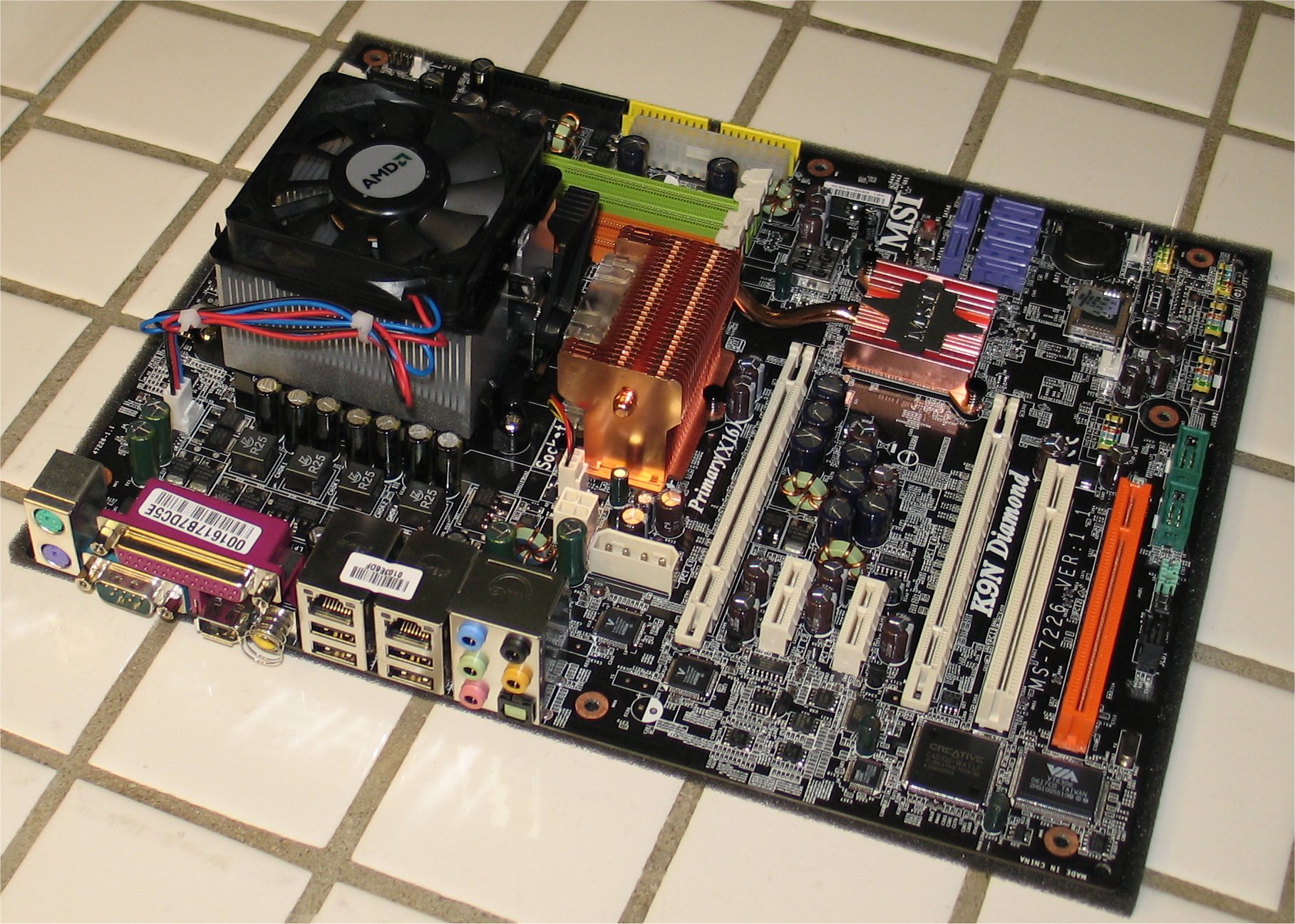

  • Mainboard MSI K9N Diamond (MS 7226) version 1.1

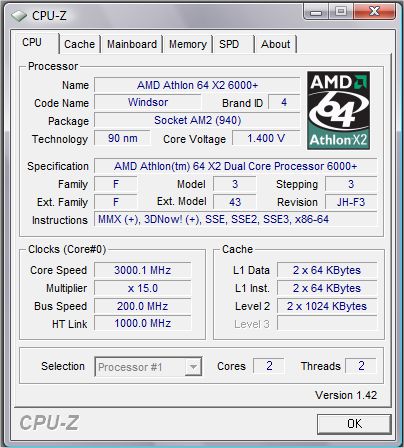

  • CPU AMD Athlon 64 X2 6000+ Windsor 3.0 GHz
  • DDR2 DIMM Slot 1 Crucial 1GB 240-pin PC2-6400 DDR2 800
  • DDR2 DIMM Slot 2 Crucial 1GB 240-pin PC2-6400 DDR2 800
  • DDR2 DIMM Slot 3 Crucial 1GB 240-pin PC2-6400 DDR2 800
  • DDR2 DIMM Slot 4 Crucial 1GB 240-pin PC2-6400 DDR2 800
  • IDE-1 Master Lite-On 20x DVD-RW w/LightScribe
  • IDE-1 Slave Lite-On 52x CD-RW & 16x DVD-rom combo
  • PCI-E1 PNY GeForce 9800GT EE 512MB GDDR3
  • PCI-E2 Open
  • PCI-E3 Open
  • PCI-E4 Open
  • PCI-1 Open
  • PCI-2 Open

  • SATA 1 Western Digital 80GB HDD (Data)
  • SATA 2 Western Digital 250GB HDD (MP3s)
  • SATA 3 Western Digital 120GB HDD (Windows 7 Pro)
  • SATA 4 Western Digital 500 GB HDD (backups)
  • SATA 5
  • SATA 6

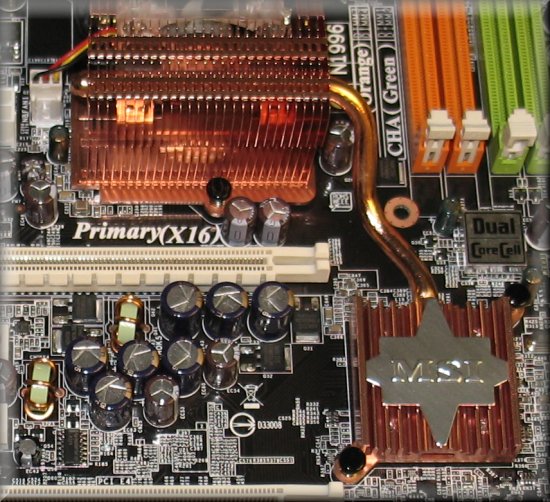

Close-up of Northbridge, Southbridge, and Heat Pipe

Read my review of the MSI K9N Diamond
